| 1. Main technical parameters of genset | ||||
| Gensets Model | OWSC1000GFS | |||
| Rated Power（KW/KVA） | 720/900 | |||
| Standby Power（KW/KVA） | 800/1000 | |||
| Rated Current （A） | 1299 | |||
| Overall Dimensions （L×W×H） | Silent Type with canopy : 5900*2100*2500 | |||
| Refer to the weight | Silent Type with canopy : 10130kg | |||
| Rated voltage（V） | 400/230; 3phase, three-phase four-wire | |||
| Frequency（Hz） | 50 | |||
| Rated Speed（rpm） | 1500 | |||
| Power factor | 0.8（lag） | |||
| Excitation Mode | Brushless, self-excitation | |||
| Starting mode | DC24V motor starting | |||
| Speed regulation | Electronic governor | |||
| Cooling Mode | Closed water cooling | |||
| 2. Main performance index of genest | ||||
| Frequency drop （%） | 0-5 | |||
| Steady state frequency band （%） | ≤1.5 | |||
| Transient frequency deviation | 100% The sharp reduction power （%） | ≤+12 | ||
| Suddenly applied load （%） | ≤-20 | |||
| Frequency recovery time (S） | ≤5 | |||
| Relative frequency tolerance band （%） | 2 | |||
| Steady state voltage deviation （%） | ≤±2.5 | |||
| Transient voltage deviation | 100% The sharp reduction power （%） | ≤+25 | ||
| Suddenly applied load （%） | ≤-20 | |||
| Voltage recovery time (S) | ≤6 | |||
| 3. Technical parameters of diesel engine | ||||
| Engine Model | Commins KTA38-G2A | |||
| Rated Power（KW） | 813 | |||
| Standby power （KW） | 896 | |||
| Rated speed （rpm） | 1500 | |||
| Type | Water cooled, in line, four stroke, turbocharge | |||
| Number of cylinders | 12.V | |||
| Compression ratio | 14.5:1 | |||
| Cylinder diameter * stroke | 159*159 | |||
| Displacement | 38 L | |||
| Oil capacity | 135 L | |||
| Coolant Capacity | 200 L | |||
| 4. Generator technical parameters | ||||
| Generator brand | Supermaly HC634D | |||
| Rated Power (KW/KVA) | 720 | |||
| Voltage（V） | 400/230 | |||
| Rated frequency（Hz） | 50 | |||
| Insulation grade | Class H | |||
| level of protection | IP22 | |||
| phase | three-phase four-wire | |||
| Voltage | AVR | |||
| Excitation Mode | Pure copper brushless; Brushless self-excitation | |||
| 5. Control system parameters | ||||
| Iv Brand protection | Deepsea 7420 single genset control module | |||
| 6. Genset Configuration Details | ||||
| Name | Model | QTY | Unit | Remark |

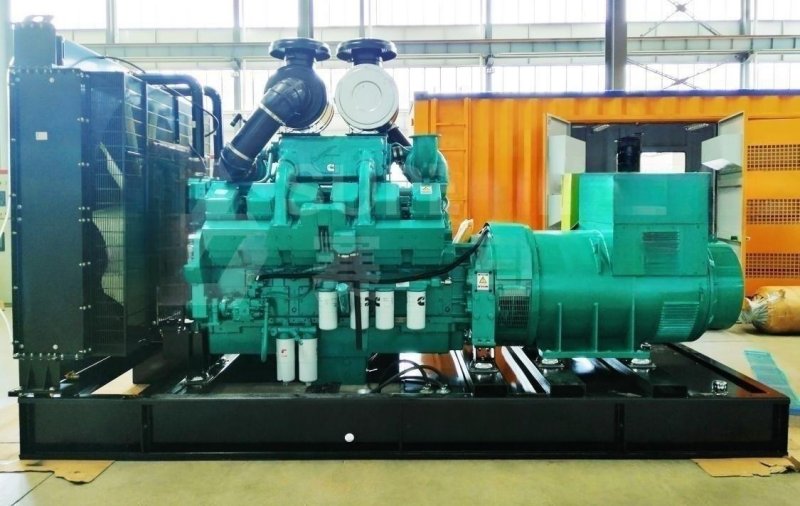

| Engine | Commins KTA38-G2A | 1 | Set | installed |
| Generator | HC634D | 1 | Set | installed |
| Radiator | The 40℃original water tank from Commins | 1 | Set | installed |
| Breaker | 1600A Chint MCCB | 1 | Set | installed |
| Control System | Deepsea 7420 | 1 | Set | installed |
| Chassis | 1200 L independent fuel tank in Silent canopy | 1 | Set | installed |
| Fuel filter | original | 1 | Set | installed |
| Oil filter | original | 1 | Set | installed |
| Air filter | original | 1 | Set | installed |
| Storage battery | Maintenance-free battery | 1 | Set | installed |
| battery cable | Pure copper battery wire | 1 | Set | installed |
| Absorber | original | 1 | Set | installed |
| silencer | / | 1 | Set | installed |

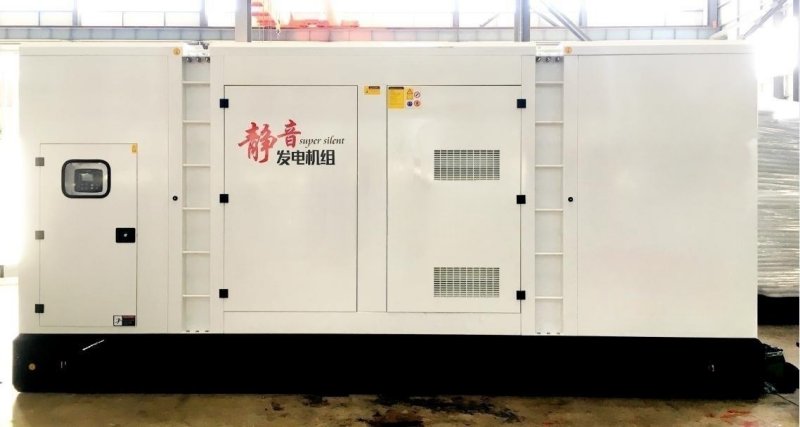

| Silent canopy | 2.5mm cold plate bending, pickling phosphating, spraying, internal paste 40mm high performance sound-absorbing sponge, independent exhaust chamber, air inlet noise reduction partition | 1 | Set | installed |
| Accessories and materials | Genset manual; Engine manual; Alternator manual;Certificate of qualification; Random tool etc | 1 | Set | Included |
