OVERVIEW
GENSET MODEL | RATED POWER(kW/kVA) | STANDBY POWER (kW/kVA) | DIESEL ENGINE | MEASUREMENT (mm) | WEIGHT(kg) |
MODEL | RATED POWER |
(kW) |
OWELL-RI8OP | 8/10 | 8.8/11 | YSAD380D | 10.3 | 1860x800x950 | 700 |
OWELL-RI10OP | 10/12.5 | 11/13.75 | YD480D | 14 | 1860x800x950 | 700 |
OWELL-RI12OP | 12/15 | 13.2/16.5 | YD480D | 14 | 1860x800x950 | 700 |
OWELL-RI16OP | 16/20 | 17.6/22 | YSD490D | 21 | 2050x880x1050 | 800 |
OWELL-RI20OP | 20/25 | 22/27.5 | K4100D | 30 | 1600x640x1000 | 680 |
OWELL-RI24OP | 24/30 | 26.4/33 | K4100D | 30 | 1600x640x1000 | 680 |
OWELL-RI30OP | 30/37.5 | 33/41.25 | K4100ZD | 42 | 1700x700x1100 | 790 |
OWELL-RI30OP | 30/37.5 | 33/41.25 | K4102D | 33 | 1700x700x1100 | 790 |
OWELL-RI40OP | 40/50 | 44/55 | K4100ZD | 42 | 1870x720x1250 | 860 |
OWELL-RI40OP | 40/50 | 44/55 | N4105ZD | 56 | 1870x720x1250 | 860 |
OWELL-RI50OP | 50/62.5 | 55/68.75 | R4105ZD | 56 | 1870x720x1250 | 860 |
OWELL-RI50OP | 50/62.5 | 55/68.75 | N4105ZD | 56 | 1870x720x1250 | 860 |
OWELL-RI60OP | 60/75 | 66/82.5 | R6105ZD | 84 | 2210x720x1380 | 910 |
OWELL-RI60OP | 60/75 | 66/82.5 | R4105ZLD | 66 | 2210x720x1380 | 910 |
OWELL-RI60OP | 60/75 | 66/82.5 | N4105ZLD | 66 | 2210x720x1380 | 910 |
OWELL-RI80OP | 80/100 | 88/110 | R6105ZD | 84 | 2210x720x1380 | 910 |
OWELL-RI100OP | 100/125 | 110/137.5 | R6105AZLD | 110 | 2340x720x1550 | 1350 |
OWELL-RI120OP | 120/150 | 132/165 | R6105IZLD | 132 | 2570x775x1725 | 1450 |
OWELL-RI150OP | 150/187.5 | 165/206.25 | R6113ZLD | 155 | 2570x775x1725 | 1650 |
OWELL-RI150OP | 150/187.5 | 165/206.25 | R6110ZLD | 170 | 2570x775x1725 | 1650 |
OWELL-RI160OP | 160/200 | 176/220 | R6126ZLD204 | 204 | 2950X1150X1700 | 2150 |
OWELL-RI200OP | 200/250 | 220/275 | R6126ZLD235 | 235 | 2950X1150X1700 | 2150 |
OWELL-RI250OP | 250/312.5 | 275/343.75 | R6126ZLD288 | 288 | 3250x1250x1830 | 2350 |

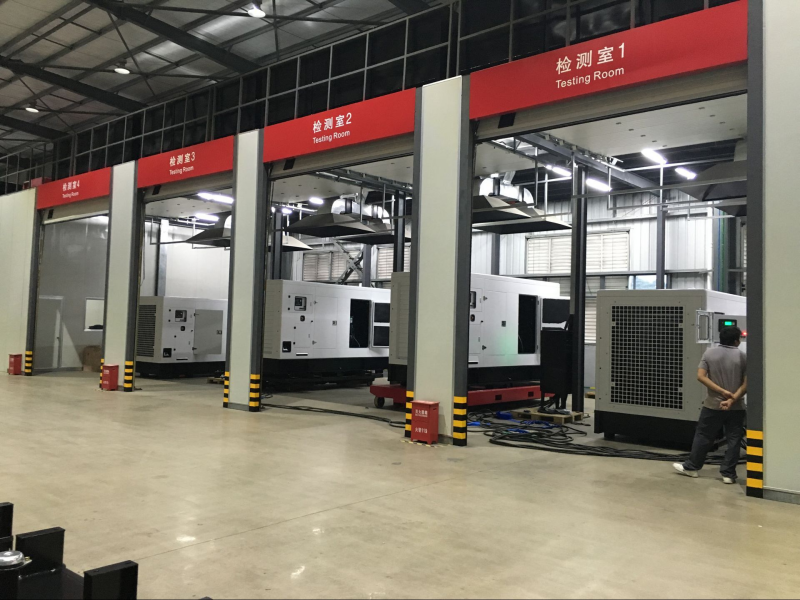

Quality & Testing
Production & management follow ISO9001:2015 requirement, each generator must be passed strict inspection in each progressing.
1. All the raw materials/parts by IQC (Incoming Quality Control) before launch into process.
2. Each generator/part under control of IPQC (Input Process Quality Control).
3. Each generator/part must be pass 100% inspection between process.
4. All-sided ex-factory testing in various condition (Outgoing Quality Control), test items as following.
>Loading test in 0%, 25%, 50%, 75%, 100%,
>Heat run test
>Insulation resistance test
>Frequently starting test
>Alarm and timing relays test.

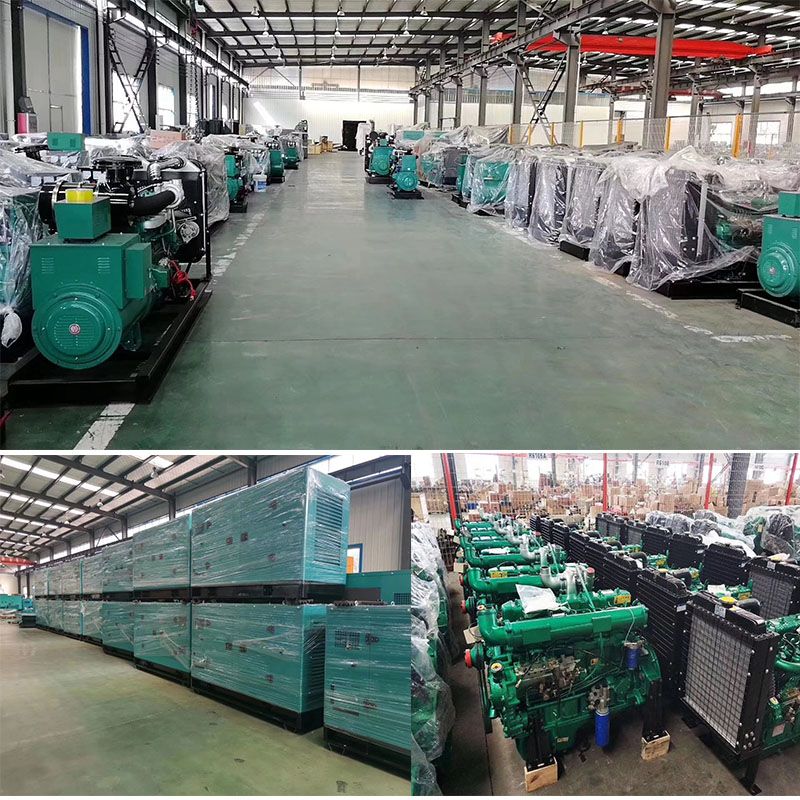

WORKSHOP

Packing & Delivery
