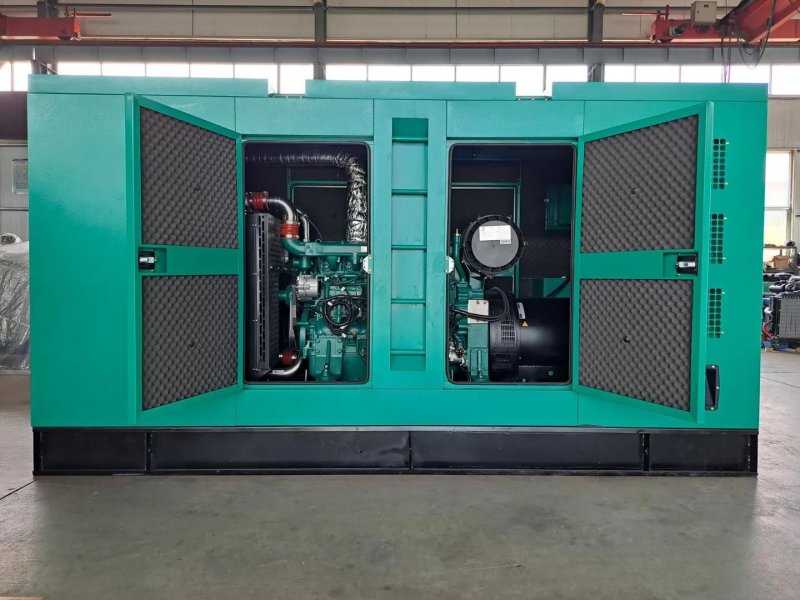

OWELL 30kW/37.5kVA Silent Standby Diesel Generator powered by WEICHAI power
| 1. Genset main specifications | ||
| Genset model | OW-30GFS | |
| Rated power(KW/KVA) | 30/37.5 | |
| Standby power(KW/KVA) | 33/41.25 | |
| Rated Current/Max. Current(A) | 57 | |
| Reference sizes (L*W*H) | 2100*950*1200 | |
| Reference weight | 920KG | |
| Rated output voltage(V) | 380/220; three-phase four-wire | |
| Frequency (Hz) | 50 | |
| Rated speed(rpm) | 1500 | |
| Rated power factor | 0.8 | |
| Exciting mode | Brushless, self-excitation | |
| Starting mode | DC12V motor starting | |
| Speed regulation | Electronic governor | |
| Cooling mode | Closed water cooling Radiator with mechanical fan | |
| 2. Gensent main performance index | ||
| Frequency drop (%) | 0-5 | |
| Steady-state frequency band(%) | ≤1.5 | |
| Transient frequency deviation | 100% sudden power reduction(%) | ≤+12 |
| Sudden power boost(%) | ≤-20 | |
| Frequency recovery time (S) | ≤5 | |
| Relative frequency tolerance band(%) | 2 | |
| Steady voltage deviation(%) | ≤±2.5 | |
| Transient Voltage deviation | 100% sudden power reduction(%) | ≤+25 |
| Sudden power boost(%) | ≤-20 | |
| Voltage recovery time (S) | ≤6 | |
| 3. Engine technical specs | ||
| Model | Weichai WP2.3D40E200 | |
| Rated power(KW/KVA) | 36/45 | |
| Max.power(KW/KVA) | 40/50 | |
| Rated speed(rpm) | 1500 | |
| Type | Water cooled, in line, four stroke, turbocharge | |
| Cylinder No. | 4.L | |
| Compression ratio | 17.5：1 | |
| Bore*Trip | 82*92 | |
| Oil capacity | 8 L | |
| Displacement | 2.3 L | |
| Coolant Capacity | 20 L | |
| 4.Alternator technical specs | ||
| Model | BC184H | |
| Rated power(KW) | 30/37.5 | |
| Voltage(V) | 380/220 Three-phases | |
| Frequency(Hz) | 50 | |
| Insulation class | Class H | |
| Protection class | IP22 | |
| Phase & wires | three-phase four-wire | |
| Voltage regulator | AVR | |
| Exciting mode | Pure copper; Brushless self-excitation | |
| 5. Control system specs | ||
| Model | HGM6120 | |
| Display | LCD（132x64） | |
| Controller language | Chinese & English & Spanish & Russian & Others | |
| Alarm | Ø Speed is too high/too low Ø The battery voltage is too low or too high Ø Start and stop failed Ø Charging failure Ø Overcurrent Ø Unit voltage is too low/too high Ø Low oil pressure Ø Emergency stop Ø Excessive engine temperature Ø Overload | |
| Monitor display | Ø Unit voltage (phase-phase/Phase-line) Ø Engine oil pressure (pounds per square inch - bar) Ø Current(L1,L2,L3) Ø Engine temperature (°C and °F) Ø Unit frequency (Hz) Ø Factory battery voltage Ø Engine running hour meter Ø Unit kVA, KWH Ø Unit power as a percentage of rated power Ø Unit Cos (σ) | |
| Configuration Details | |||
| Item | Model | Quantity | Remark |
| Engine | Weichai WP2.3D40E200 | 1 | installed |
| Alternator | BC184H | 1 | installed |
| Radiator | 50℃ Cooling Radiator | 1 | installed |
| Breaker | 63A ATS | 1 | installed |
| Control System | HGM6120 | 1 | installed |
| Chassis | 8 hours chassis tank; ≥50L | 1 | installed |
| Fuel filter | original | 1 | installed |
| Oil filter | original | 1 | installed |
| Air filter | original | 1 | installed |
| Coolant pre-heater | 0.6kW 220V heater | ||
| Storage battery | Maintenance-free battery | 1 | installed |
| battery cable | Pure copper battery wire | 1 | installed |
| Absorber | original | 1 | installed |
| silencer | Industrial exhaust silencer and stainless steel bellow | 1 | installed |
| Silent canopy | 1.5/2mm cold plate bending, pickling phosphating, spraying, internal paste 40mm high performance sound-absorbing sponge, independent exhaust chamber, air inlet noise reduction partition;65dB~70dB; | 1 | installed |
| Accessories and materials | Generator Unit manual; Engine manual; Alternator manual;Certificate of qualification; tools, etc | 1 | Included |
