1. Good fuel economy performance. high thermal efficiency. When the working condition changes, the Variation curve of fuel consumption rate is relalively flat, so it's economical in case of low load.
2. Reliability and durabilily. low failure rate because of no ignition system
3. Low emission of harmful substances.
4. Good fire safety. The automatic voltage regulation of the generator set is silicon controlled. compound excitation, TD1 type carbon resistance AVA, high power pipes are used in Individual cases.
1. Good fuel economy performance. high thermal efficiency. When the working condition changes, the Variation curve of fuel consumption rate is relalively flat, so it's economical in case of low load.
2. Reliability and durabilily. low failure rate because of no ignition system
3. Low emission of harmful substances.
4. Good fire safety. The automatic voltage regulation of the generator set is silicon controlled. compound excitation, TD1 type carbon resistance AVA, high power pipes are used in Individual cases.
Product details
OVERVIEW
MODEL
POWER
ENGINE NO.
ENGINE POWER(KW/hp)
CYLINDER
BORE mm
TRIP mm
DISPLACEMENT(L)
FUEL CONSUMPTION/kw.h
GENSET WEIGHT kg
MEASUREMENT mm
(KW/KVA)
OW-BAUDOUIN400
400/500
6M33D447E200
447/608
6
150
150
15.9
210
3000
2858*1167*1600
OW-BAUDOUIN400
400/500
6M26D447E200
447/608
6
150
150
15.9
210
3000
2858*1167*1600
OW-BAUDOUIN450
450/562.5
6M33D484E200
484/659
6
150
150
15.9
210
3100
2900*1167*1600
OW-BAUDOUIN450
450/562.5
6M26D484E200
484/659
6
150
150
15.9
210
3100
2900*1167*1600
OW-BAUDOUIN500
500/625
6M33D572E200
572/778
6
150
185
19.6
210
3500
3000*1200*1600
OW-BAUDOUIN550
550/687.5
6M33D605E200
605/823
6
150
185
19.6
210
3600
3100*1300*1650
OW-BAUDOUIN700
700/875
12M33D792E200
792/1078
12
150
150
31.8
210
7300
4000*1700*2100
OW-BAUDOUIN700
700/875
12M26D792E200
792/1078
12
150
150
31.8
210
7300
4000*1700*2100
OW-BAUDOUIN800
800/1000
12M336D902E20
902/1227
12
150
150
31.8
210
7500
4200*1750*2135
OW-BAUDOUIN800
800/1000
12M26D902E200
902/1227
12
150
150
31.8
210
7500
4200*1750*2135
OW-BAUDOUIN900
900/1125
12M33D968E200
968/1317
12
150
150
31.8
210
7600
4200*1750*2135
OW-BAUDOUIN900
900/1125
12M26D968E200
968/1317
12
150
150
31.8
210
7600
4200*1750*2135
OW-BAUDOUIN1000
1000/1250
12M33D1108E200
1108/1507
12
150
185
39.2
210
7800
4300*1800*2135
OW-BAUDOUIN1100
1100/1375
12M33D1210E200
1210/1646
12
150
185
39.2
210
7900
4300*1800*2135
Note: Specifications based on 1500RPM, 50HZ, 230/400V, power factor 0.8, 3 phase 4 wire system. 60HZ generator set can be customized
Product Features
1. The operation of diesel generator set is simple. easy to master. fewer operators required. and easy maintenance
2. Fast start. in case of emergency reach full load within 1 minute, can start and stop frequently.
3. The diesel engine is the thermal engine with the highest thermat efficiency and low luel consumption at present
4. The total cost of Installation and power generation is the lowest.
5. The diesel generator set has high power supply reliability and automatic function. It has complete functions, such as automatic start. automatic loading, automatic alarm and automatic protection, the generator set can run automatically wilhout operator and unattended.
6. The diesel generalor set is simple, less auxiliary equipment, small volume, light weight, small floor area, fast Installation, and low Investment cost.

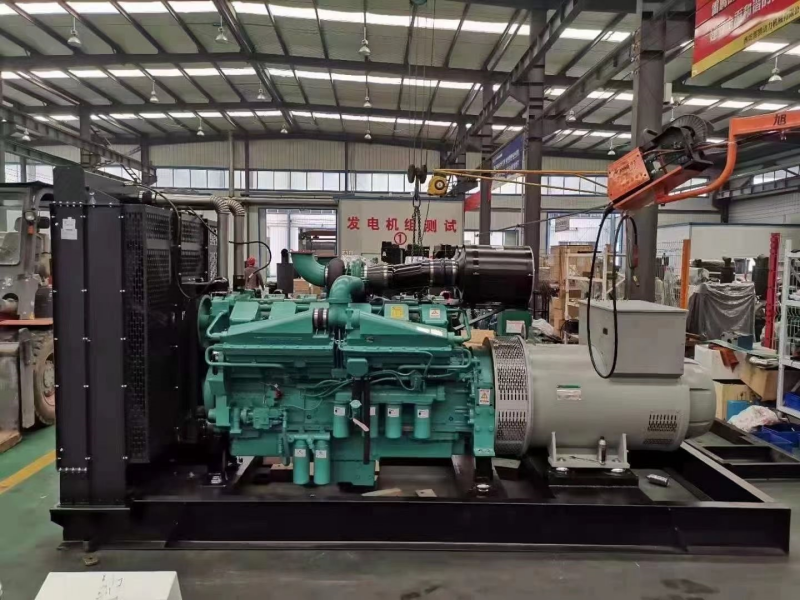

Quality & Testing
Production & management follow ISO9001:2015 requirement, each generator must be passed strict inspection in each progressing.
1. All the raw materials/parts by IQC (Incoming Quality Control) before launch into process.
2. Each generator/part under control of IPQC (Input Process Quality Control).
3. Each generator/part must be pass 100% inspection between process.
4. All-sided ex-factory testing in various condition (Outgoing Quality Control), test items as following.
>Loading test in 0%, 25%, 50%, 75%, 100%,
>Heat run test
>Insulation resistance test
>Frequently starting test
>Alarm and timing relays test.
Packing & Delivery
