Features:
· Weichai series diesel generator sets are equipped with water-cooling, four-stroke, industrial diesel engines produced by Weichai Power Company Limited.
· The gensets use modular design, compact structure. the voltage of control system is 24VDC. and equipped with diesel and oil spin-on filter and dry filter.
· They have good power, economy, reliability, the parts are versatile, easy to replace and easy maintenance.
Features:
· Weichai series diesel generator sets are equipped with water-cooling, four-stroke, industrial diesel engines produced by Weichai Power Company Limited.
· The gensets use modular design, compact structure. the voltage of control system is 24VDC. and equipped with diesel and oil spin-on filter and dry filter.
· They have good power, economy, reliability, the parts are versatile, easy to replace and easy maintenance.
WEICHAI is one of the earliest companies in China to develop and produce generator sets. It has a production history of more than 70 years. It mainly produces land-use and marine generator sets, including diesel-type and gas-type generator sets.
The power range of Weichai generator sets is 10～8700kW. The generator sets use engines independently developed and produced by Weichai Group, equipped with well-known brand generators and controllers.
They have good power, economy, reliability, the parts are versatile, easy to replace and easy maintenance.
OVERVIEW
| ITEM | RATED POWER(KW/KVA) | STANDBY POWER(KW/KVA) | ENGINE MODEL | CYLINDER | BORE/TRIP(mm) | FUEL CONSUMPTION(g/kw.h) | GENSET SIZE（L*W*H） |
| OWELL-WC20GF | 23/29 | 25/31 | WP2.3D25E200 | 4 | 89/92 | ≤220 | 1700x800x1230 |
| OWELL-WC25GF | 30/38 | 33/41 | WP2.3D33E200 | 4 | 89/92 | ≤212 | 1660X600X1130 |
| OWELL-WC30GF | 36/45 | 40/50 | WP2.3D40E200 | 4 | 89/92 | ≤216 | 1800x790x1210 |
| OWELL-WC40GF | 44/55 | 48/60 | WP2.3D48E200 | 4 | 89/92 | ≤216 | 1800X700X1130 |
| OWELL-WC50.1GF | 60/75 | 66/83 | WP4.1D66E200 | 4 | 105/118 | ≤235 | 1850x790x1200 |
| OWELL-WC50GF | 60/75 | 66/83 | WP4D66E200 | 4 | 105/130 | ≤208 | 1950x750x1650 |
| OWELL-WC64GF | 72/90 | 80/100 | WP4.1D80E200 | 4 | 105/118 | ≤235 | 2150X850X1320 |
| OWELL-WC75GF | 90/113 | 100/125 | WP4D100E200 | 4 | 105/130 | ≤203 | 2100x770x1320 |
| OWELL-WC80GF | 97/121 | 108/135 | WP4D108E200 | 4 | 105/130 | ≤205 | 2100x800x1320 |
| OWELL-WC100GF | 120/150 | 132/165 | WP6D132E200E | 6 | 105/130 | ≤205 | 2100x700x1320 |
| OWELL-WC120GF | 138/173 | 152/190 | WP6D152E200 | 6 | 105/130 | ≤205 | 2300x800x1360 |
| OWELL-WC150GF | 152/190 | 167/209 | WP6D167E200 | 6 | 105/130 | ≤201 | 2400X890X1380 |
| OWELL-WC160GF | 182/228 | 200/250 | WP10D200E200 | 6 | 126/130 | ≤215 | 2530X990X1400 |
| OWELL-WC200GF | 216/270 | 238/298 | WP10D238E200 | 6 | 126/130 | ≤215 | 2900x890x1510 |
| OWELL-WC220GF | 240/300 | 264/330 | WP10D264E200 | 6 | 126/130 | ≤215 | 2900x890x1510 |
| OWELL-WC250GF | 288/360 | 317/396 | WP12D317E200 | 6 | 126/155 | ≤210 | 3000x950x1550 |
| OWELL-WC300GF | 290/363 | 320/400 | WP10D320E200 | 6 | 126//130 | ≤210 | 3050x950x1520 |
| OWELL-WC320GF | 350/438 | 385/481 | WP13D385E200 | 6 | 127/165 | ≤210 | 3135x1100x1620 |
| OWELL-WC350GF | 400/500 | 405/506 | WP13D405E200 | 6 | 127/165 | ≤200 | 3320X1196X1657 |
| OWELL-WC360GF | 406/508 | 447/559 | 6M26D447E200 | 6 | 150/150 | ≤197 | 3320X1196X1657 |
| OWELL-WC400GF | 440/550 | 484/605 | 6M26D484E200 | 6 | 150/150 | ≤210 | 3480X1300X1823 |
| OWELL-WC450GF | 520/650 | 572/715 | 6M33D572E200 | 6 | 150/185 | ≤210 | 3600X1500X1910 |
| OWELL-WC500GF | 550/688 | 605/756 | 6M33D605E200 | 6 | 150/185 | ≤210 | 3780x1600x2100 |
| OWELL-WC650GF | 720/900 | 792/990 | 12M26D792E200 | 12 | 150/150 | ≤210 | 4400X1680X2350 |
| OWELL-WC730GF | 820/1025 | 902/1128 | 12M26D902E200 | 12 | 150/150 | ≤210 | 4550X1700X2540 |
| OWELL-WC800GF | 880/1100 | 968/1210 | 12M26D968E200 | 12 | 150/150 | ≤210 | 4550X1770X2600 |
| OWELL-WC900GF | 1007/1259 | 1108/1385 | 12M33D1108E200 | 12 | 150/185 | ≤210 | 4550X1800X2512 |
| OWELL-WC1000GF | 1100/1375 | 1210/1513 | 12M33D1210E200 | 12 | 150/185 | ≤210 | 5170X2100X2672 |

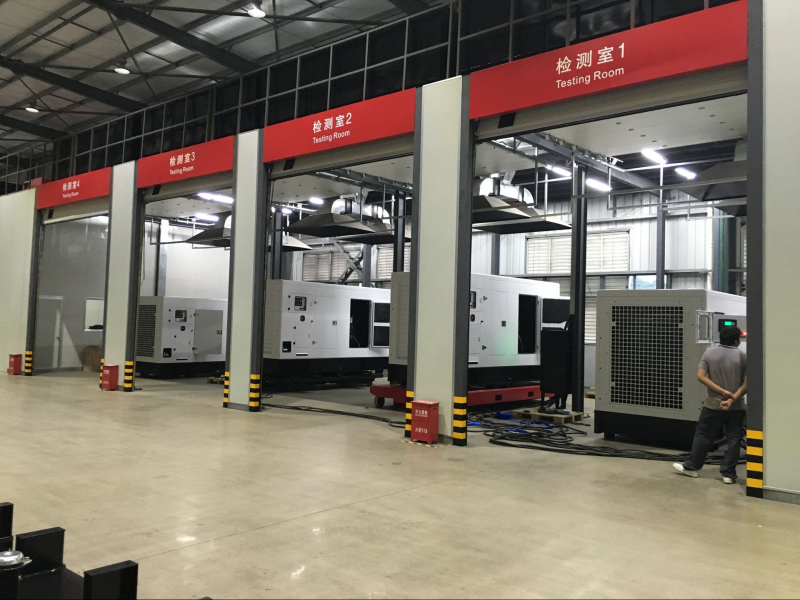

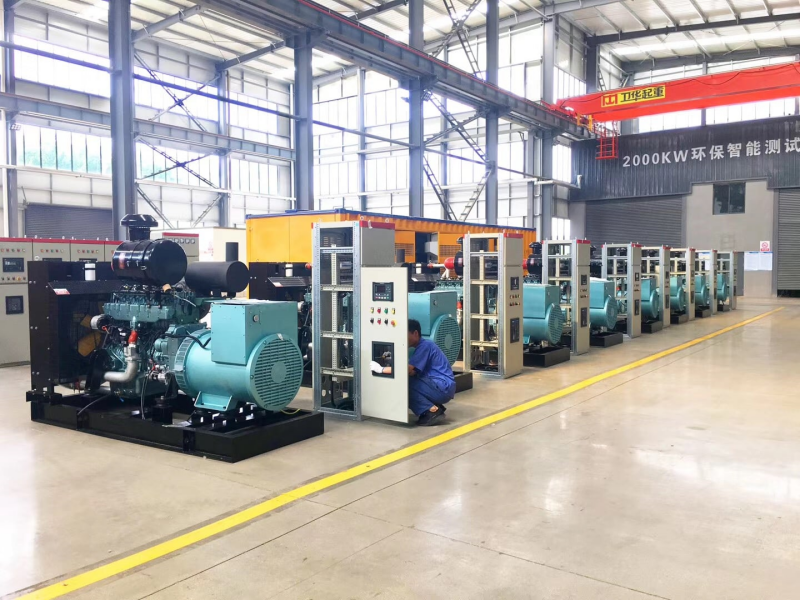

Quality & Testing
Production & management follow ISO9001:2015 requirement, each generator must be passed strict inspection in each progressing.
1. All the raw materials/parts by IQC (Incoming Quality Control) before launch into process.
2. Each generator/part under control of IPQC (Input Process Quality Control).
3. Each generator/part must be pass 100% inspection between process.
4. All-sided ex-factory testing in various condition (Outgoing Quality Control), test items as following.
>Loading test in 0%, 25%, 50%, 75%, 100%,
>Heat run test
>Insulation resistance test
>Frequently starting test
>Alarm and timing relays test.

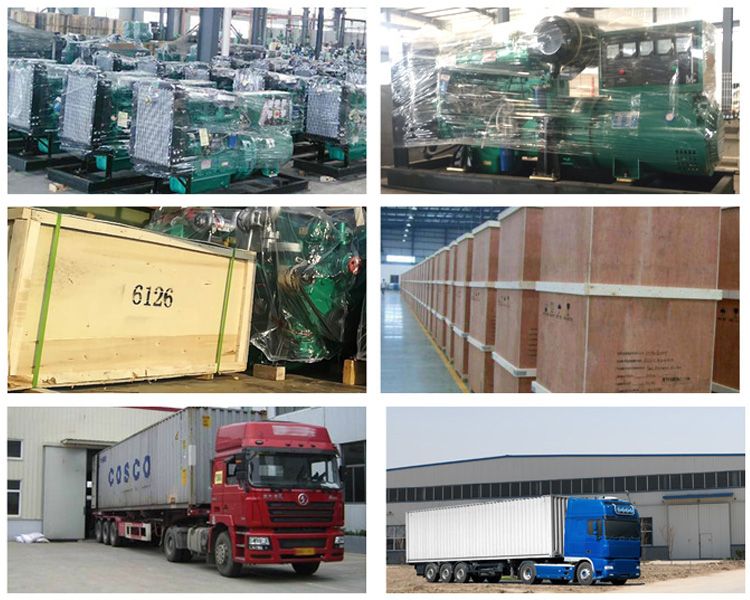

Packing & Delivery
