Business case: 10 sets delivered to Colombia
| 1. Genset main specifications | ||
| Genset model | SC50GF | |
| Rated power(KW/KVA) | 36/45 | |
| Standby power(KW/KVA) | 40/50 | |
| Rated Current/Max. Current(A) | 118.1/131.22 | |
| Reference sizes (L*W*H) | Silent type: 2450*1050*1250mm | |
| Reference weight | Silent type 1100kg | |
| Rated output voltage(V) | 220/127V | |
| Frequancy (Hz) | 60 | |
| Rated speed(rpm) | 1800 | |
| Rated power factor | 0.8 | |
| Exciting mode | Brushless,self-exciting | |
| Starting mode | 24V electrical starting | |
| Speed regulation | Electronic Governor | |
| Cooling mode | Enclosed fan,water-cooled | |
| 2. Gensent main performance index | ||
| Frequency drop (%) | 0-5 | |
| Steady-state frequency band(%) | ≤1.5 | |
| Transient frequency deviation | 100% sudden power reduction(%) | ≤+12 |
| Sudden power boost(%) | ≤-20 | |
| Frequency recovery time (S) | ≤5 | |
| Relative frequency tolerance band(%) | 2 | |
| Steady voltage deviation(%) | ≤±2.5 | |
| Transient Voltage deviation | 100% sudden power reduction(%) | ≤+25 |
| Sudden power boost(%) | ≤-20 | |
| Voltage recovery time (S) | ≤6 | |
| 3. Engine technical specs | ||
| Model | Cummins 4BT3.9-G2 | |
| Rated power(KW/KVA) | 40/50 | |
| Max.power(KW/KVA) | 44/55 | |
| Rated speed(rpm) | 1800 | |
| Type | Direct line, Water-cooled, Four stroke | |
| Intake type | Turbocharged | |
| Cylinder No. | 4.L | |
| Compression ratio | 18 : 1 | |
| Bore*Trip | 102*120 | |
| 100% rated output fuel consumption | 221g/kW.h(2.827gal/h) | |
| 75% rated output fuel consumption | 230g/kW.h(2.219gal/h) | |
| Oil capacity | 11 L | |
| Displacement | 3.9 L | |
| 4.Alternator technical specs | ||
| Model | SP POWER 184J | |
| Rated power(KW) | 36 | |
| Voltage(V) | 220/127 | |
| Rated frequancy(Hz) | 60 | |
| Insulation class | H class | |
| Protection class | IP23 | |
| Phase & wires | 3 Phase 4 wires | |
| Voltage regulator | AVR | |
| Exciting mode | Brushless, Self-excited,100% cooper | |
| 5. Control system specs | ||
| Model | Smartgen 6120 | |
| Display | LCD(132*64) | |
| Controller language | Chinese & English & Spanish & Russian & Others | |
| Alarm | Speed is too high / too low Battery voltage is too low / high Start and stop failure Charging failed Overcurrent Voltage is too low/high Oil pressure is too low Emergency stop Engine temperature is too high Overload | |
| Display contents | Voltage (Phase-Phase/Phase-Line) Engine Oil Pressure Current (L1, L2, L3) Engine temperature Frequency (Hz) Battery voltage Engine running hours KVA, KWh Genset real-time power Genset Cos (σ) | |
| Configuration Details | |||
| Item | Model | Quantity | Remarket |
| Engine | Cummins 4BT3.9-G2 | 1 | Installed |
| Alternator | SP POWER 184J | 1 | Installed |
| Cooling water tank | Cummins original tanks | 1 | Installed |
| Output circuit breaker | CHNT brand | 1 | Installed |
| Control system | Smartgen brand | 1 | Installed |
| Chassis | Fuel tank included | 1 | Installed |
| Diesel filter | Original accessories | 1 | Installed |
| Oil filter | Original accessories | 1 | Installed |
| Air filter | Original accessories | 1 | Installed |
| Battery | Maintenance-free battery | 1 | Installed |
| Battery cable | Pure copper battery wire | 1 | Installed |
| Dashpot | Original accessories | 1 | Installed |
| Corrugated pipe, silencer | / | 1 | Installed |

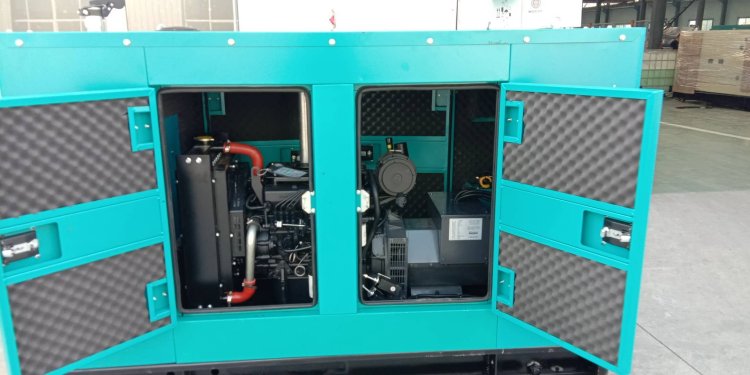

| Silent canopy | 1.5mm cold plate; 40mm high-performance sound-absorbing sponge applied inside; noise 65~70dB in distance of 7 meters | 1 | Installed |
| Accessories and materials included | 1 | Attachement |
Unleash Power with OWELL Diesel Generators: Empowering Your World with Cummins Technology
When it comes to reliable and robust power solutions, OWELL Diesel Generator Sets stand tall as the epitome of excellence. Fueled by the trusted might of Cummins Power Series, OWELL presents a remarkable range of generator sets tailored to meet your every need, whether on land or at sea. We don't just offer products; we deliver power-packed solutions that redefine industry standards.
Global Assurance: Cummins International Warranty Service
With OWELL and Cummins, you're not just investing in a generator set – you're securing peace of mind. Every OWELL generator powered by Cummins Power Series is backed by Cummins' International Warranty Service. Wherever you are, whenever you need it, Cummins' renowned support network has you covered.
Empower Your World with OWELL and Cummins
OWELL Diesel Generator Sets, fueled by Cummins Power Series, are more than products – they're promises fulfilled. From the land to the sea, in silence or on the move, our generators redefine the way you experience power. Trust in the legacy of Cummins and the innovation of OWELL to light up your life.
Ready to explore a world of customized power solutions? Contact us today and experience power, reimagined. Your journey to unmatched power starts here, with OWELL and Cummins by your side.
