OWELL 15kw horizontal axis permanent magnet wind turbine generator
Product Features
1. Low Torque when start-up. high power generating efficiency
2. Tight fit design to wind wheel. 3 blades are assembled as 120° accurately so that wind wheel runs stably.
3. Tight fit design between wheel grooves and blades, which enhances the safety and stability of whole generator
4. With intelligent microprocessor control to maximum power track, adjusts voltage and electric current effectively
OWELL 15kw horizontal axis permanent magnet wind turbine generator
Product Features
1. Low Torque when start-up. high power generating efficiency
2. Tight fit design to wind wheel. 3 blades are assembled as 120° accurately so that wind wheel runs stably.
3. Tight fit design between wheel grooves and blades, which enhances the safety and stability of whole generator
4. With intelligent microprocessor control to maximum power track, adjusts voltage and electric current effectively
OWELL 15kw horizontal axis wind turbine generator
●Wind wheel: 3 blades wheel, Laminar flow type, high lift-drag ratio, good performance. Reinforced glass fiber blades, strong toughness and perfect dynamic nature.
●Generator and swivel are designed in a complete body, a close compact structure which enhances toughness, reduce weight of the generator set, and thus make it rotate more easily and safely.
●Hub: It adopts integrated flange hub design, internal groove taper design, perfectly seamless matching with spindle, safe and reliable use.
15KW wind turbine parameters
| Model | OWELL-HR15KW |
| Rate Power | 15KW |
| Max.Power | 18KW |
| Rate Voltage | 120V/220V/380V or customized |
| Wheel Diameter | 8m |
| Generator Weight | 320KG |
| Start-up Wind Speed | 3m/s |
| Rated Wind Speed | 11m/s |
| Extreme Wind Speed | 50m/s |
| Blade Quantity | 3 pcs |
| Blade Materials | FRP |
| Generator housing Materials | Qualitative Carbon Steel |
| Export Packing | Wooden Box |
| Generator Type | 3 phase AC Permanent Magnet Generator |
| Alnico Magnet | NdFeB |
| Lubricating | Self-lubricating |
| Brake Mode | Electromagnetic |
| Wind Adjustment | Electronically Controlled Yaw |
| Work Temperature | -40℃ - 80℃ |
| Packing Weight | 390KG |

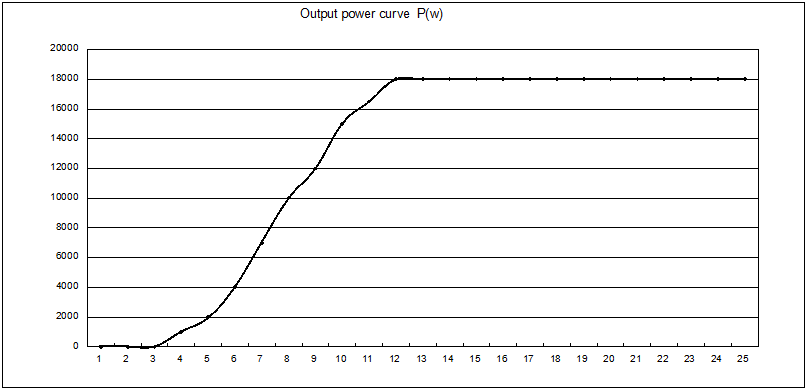

15KW Wind Generator Output Power Curve

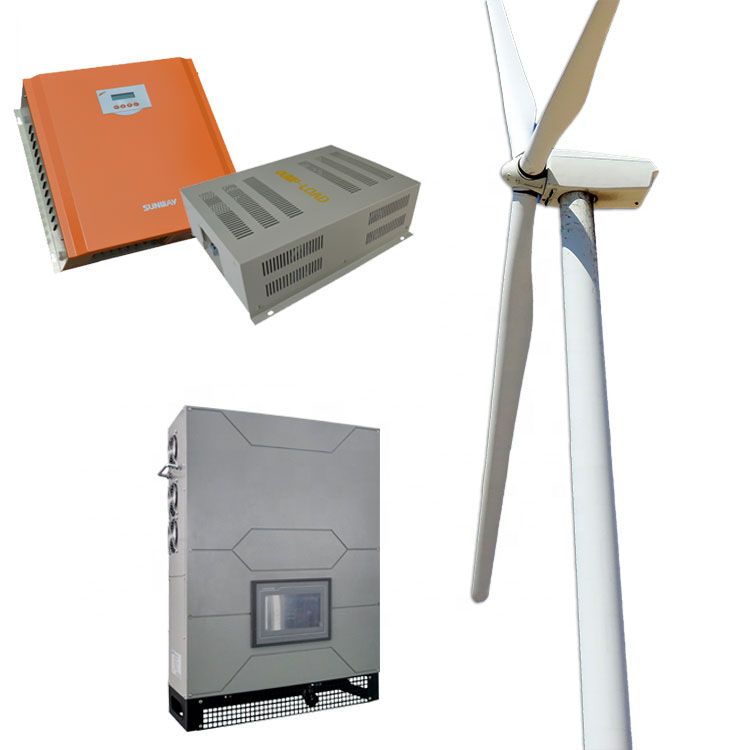

ON GRID POWER GENERATION SYSTEM
OFF-GRID POWER GENERATION SYSTEM
