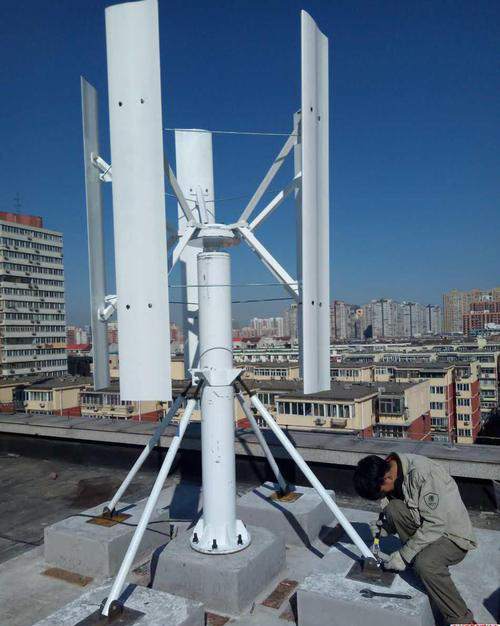

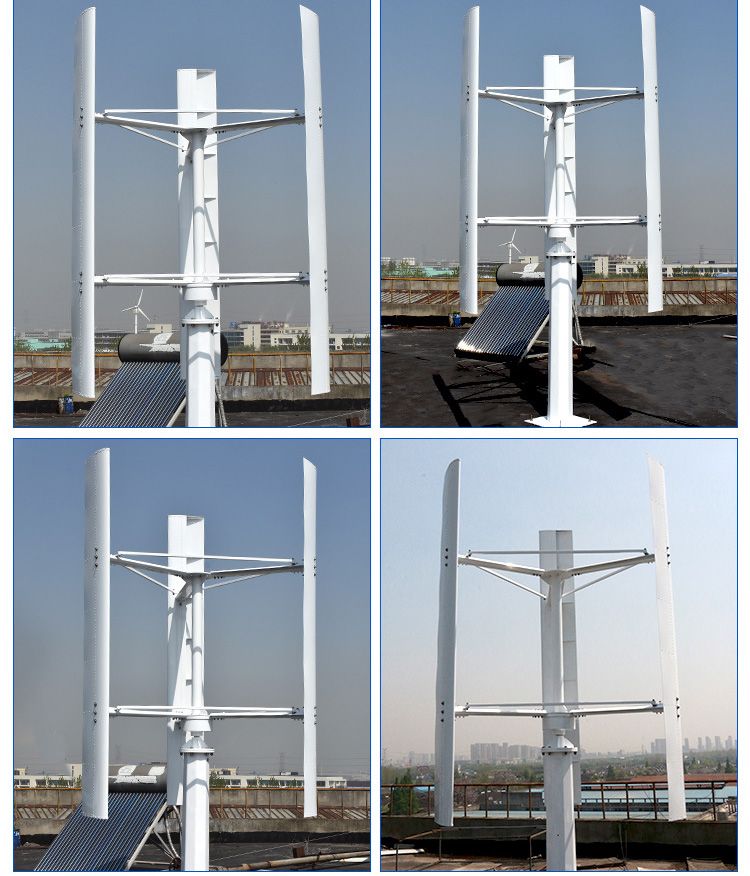

Vertical axis H type 50W-20KW wind turbine Product Features:
l Direct-drive permanent magnet ironless synchronous generator
l Stall design of blade over wind speed
l Mechanical automatic brake
l Electronic unloading and hydraulic brake protection
l Equipped with anemometer
l pwm unloading
l plc controller, equipped with hmi real-time screen monitoring, can download historical data.
Support customization
Vertical axis H type 50W-20KW wind turbine Product Features:
l Direct-drive permanent magnet ironless synchronous generator
l Stall design of blade over wind speed
l Mechanical automatic brake
l Electronic unloading and hydraulic brake protection
l Equipped with anemometer
l pwm unloading
l plc controller, equipped with hmi real-time screen monitoring, can download historical data.
Support customization
HOT SALES
| ITEM | OW-1KWH | OW-2KWH | OW-3KWH | OW-5KWH | OW-10KWH | OW-20KWH |
| Rated Power | 1KW | 2KW | 3KW | 5KW | 10KW | 20KW |
| Max Power | 1.2KW | 2.2KW | 3.5KW | 5.5KW | 12KW | 23KW |
| Volage | 48V | 48V/96V | 96V/120V | 120V/220V | 360V | 360V |
| Start-up Speed | 2m/s | 2m/s | 2m/s | 2m/s | 2.5m/s | 2.5m/s |
| Rated Speed | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s |
| Safty Speed | 35m/s | 35m/s | 35m/s | 35m/s | 35m/s | 35m/s |
| Wheel Diameters | 2.2m | 2.55m | 2.85m | 3.6m | 5.8m | 7.6m |
| Wheel Height | 2.4m | 3m/2.6m | 3.5m/3m | 4.5m/4m | 8m/6m | 10m/9m |
| Blade QTY | 3/5 pcs | |||||
| Blade Materials | FRP | Aluminium Alloy | ||||
| Alternator | 3 phase permanent magnet synchronous generator | |||||
| Brake Mode | Electromagnetic | |||||
| Wind Adjustment | Automatically | |||||
| Work Temperature | -40℃-80℃ | |||||
