In view of the characteristics of rooftop distributed photovoltaic power generation projects, combined with the actual needs ofoperation and maintenance, our company independently developed portable photovoltaic cleaning robots, which solves mostproblemsof low cleaning efficiency and high labor costs. We adopt single-board modular design to adapt to complex and changeable panel arrangement,and easy maintenance. It can be widely used in industrial and commercial rooftop photovoltaic power stations with low investment, which can improve the cleaning efficiency of photovoltaic power station panels, the power generation and the overall profitsof photovoltaic power plants.
In view of the characteristics of rooftop distributed photovoltaic power generation projects, combined with the actual needs ofoperation and maintenance, our company independently developed portable photovoltaic cleaning robots, which solves mostproblemsof low cleaning efficiency and high labor costs. We adopt single-board modular design to adapt to complex and changeable panel arrangement,and easy maintenance. It can be widely used in industrial and commercial rooftop photovoltaic power stations with low investment, which can improve the cleaning efficiency of photovoltaic power station panels, the power generation and the overall profitsof photovoltaic power plants.
Product details
Application Range

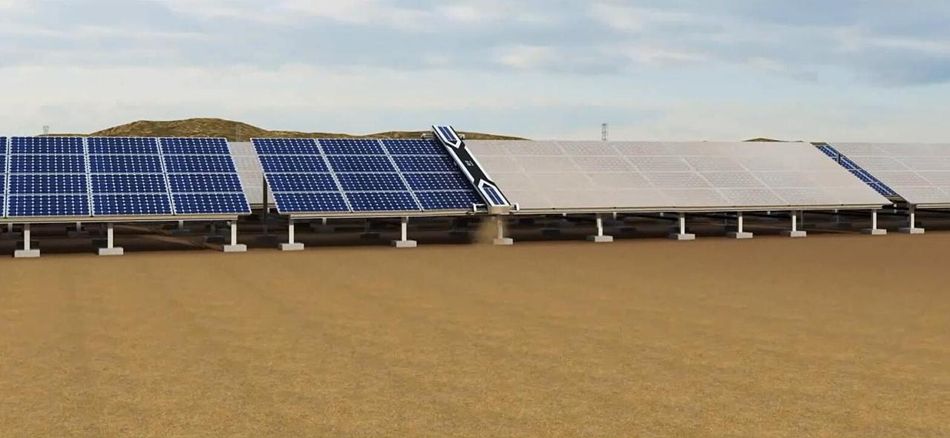

Large cleaning area, low power consumption; strong adaptability. Products are available for working environment like roofs, plains, hills, deserts, lakes and other areas and terrains

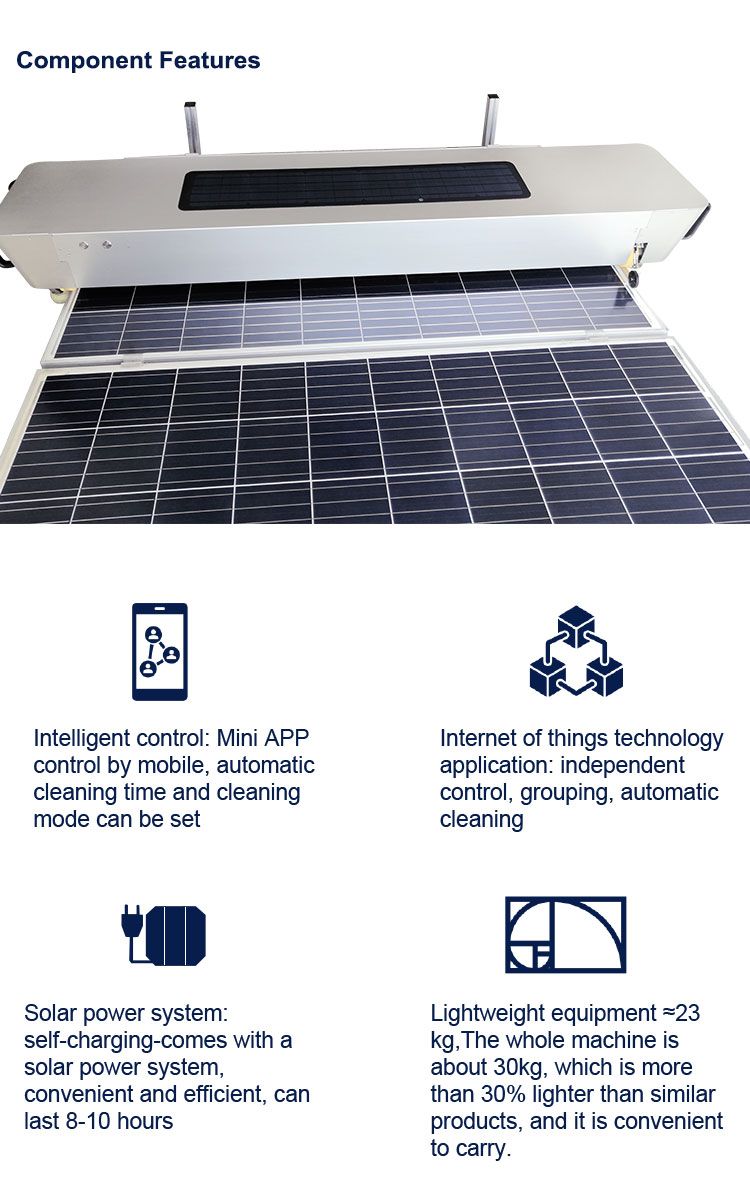

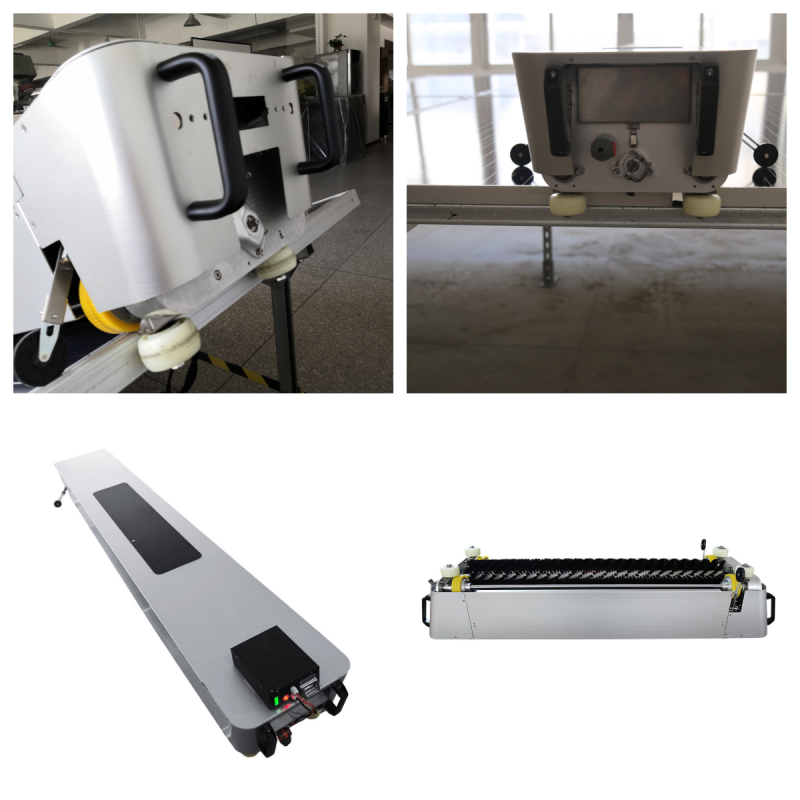

Portable Solar Photovoltaic Panels Clean Robot Features
1. Superior performance: lithium battery, brushless motor, durableservice life;
2. Full-automatic operation: automatic start and stop, automatic return, self-adaptation;
3. Light weight: The whole machine weight ≤20kg, convenient to carry;
4. Self-contained charging system: solar self-charging, working can last 8-10 hours;
5. Long cruising range: 3KM cruising range;
6. Cleaning: a machine can clean 1.2MWp/day;
7. High cost performance: low cost, quick payback;
8. Modular design: widely applicable to various arrangement arrays, easy to install;
9. Wide range of application: strong adaptability, suitable for roofs, greenhouses, plains, hills, deserts, lakes and other areas and terrains. The overall protection level of the control system is IP55;
10. workingtemperature: -40~70 ℃;
11. Large cleaning area: 3000m one-way running distance;
12. Goodcleaning effects: the cleaning efficiency is above 95%, and the cleaning part adopts a soft spiral brush made of polymer materials, which will not damage the tempered glass.
13. Equipped with wireless module: remote control and telemetry function;
14. 2operation modes: full-automatic remote control operation mode and local manual control operation mode. The 2modes can be switched mutually;
15. Equipped with infrared temperature sensor group: it can measure the temperature of the crystal silicon wafer of the PV panel, whichanalyze the power generation of the single panel;
16. The system comes with two modes: water cleaning and anhydrous cleaning;
Technical Specs
Models
Basic Parameters
OWELL-SPR1650
OWELL-SPR1950
OWELL-SPR1650-2
Length of PV Panel mm
1650(1640)
1950(1960)
1650(1640)*2
Over-obstacle Capacity mm
20
20
20
Walk Distance m
0-800
0-800
0-800
Walk Speed m/min
15-20
15-20
15-20
Motor Power w
90W
90W
90W
Weight Kg
30-35KG
30-35
53-60
Width mm
340
340
340
Height mm
300
300
300
Length mm
2020
2330
3690
Water Consumption
270L/H(0.3mpa)
270L/H(0.3mpa)
330L/H(0.3mpa)
Basic Parameters
OWELL-SPR1950-2
OWELL-SPR990
OWELL-SPR990-2
Length of PV Panel mm
1950(1960)*2
990(992)
990(992)*2
Over-obstacle Capacity mm
20
20
20
Walk Distance m
0-800
0-800
0-800
Walk Speed m/min
15-20
15-20
15-20
Motor Power w
90W
90W
90W
Weight Kg
53-60
25
30-35
Width mm
340
340
340
Height mm
300
300
300
Length mm
4310
1360
2370
Water Consumption
330L/H(0.3mpa)
210L/H(0.3mpa)
270L/H(0.3mpa)
Basic Parameters
OWELL-SPR990-3
OWELL-SPR1650-3
OWELL-SPR1950-3
Length of PV Panel mm
990(992)*3
1650(1640)*3
1950(1960)*3
Over-obstacle Capacity mm
20
20
20
Walk Distance m
0-800
0-800
0-800
Walk Speed m/min
15-20
15-20
15-20
Motor Power w
90W
150W
150W
Weight Kg
53-56
78kg
78kg
Width mm
340
340
340
Height mm
300
300
300
Length mm
3380
5360
6290
Water Consumption
330L/H(0.3mpa)
360L/H(0.3mpa)
360L/H(0.3mpa)
SPECIFICATIONS:
Charging power: 40W/panel
Battery: 24V/10Ah (20Ah for 3 panels)
Charging time: 8-9 hours
Service life of brushes: 3-5 years
Working temperature: -70℃~40℃
Cleaning method: dry cleaning
Other special functions: forward and reverse speed regulation
Options: 1. bridge-set 2. Water washing device 3. wireless remote
