Product details

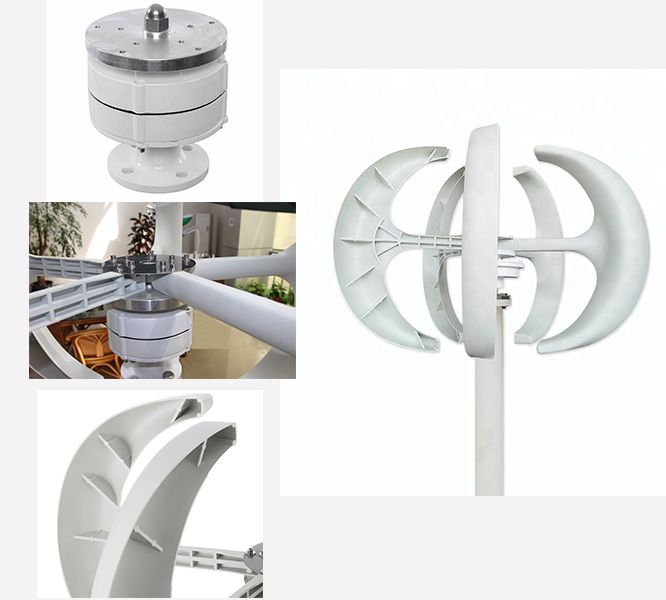

OWELL lantern shape vertical axis wind turbine generator


Rate Power100W200W300W
Wheel Diameter0.9m0.9m0.9m
Net Weight8kg8.5kg9kg
Package Weight11kg11.5kg12kg
Package Sizes730*280*245mm
Blade Quantity5 pcs
Rate Voltage12V/24V
Start-up Wind Speed2.5m/s
Rated Wind Speed12m/s
Extreme Wind Speed45m/s
Blade MaterialsNylon Fibers
Generator housing MaterialsAluminum Alloy
Export PackingCarton
Generator Type3 phase AC Permanent Magnet Generator
Alnico MagnetNdFeB
Brake ModeElectromagnetic
Wind AdjustmentAutomatically adjustment to windward
Work Temperature-40℃ ~ 80℃

*The specifications above are just for reference. Contact us for more customized solutions!!

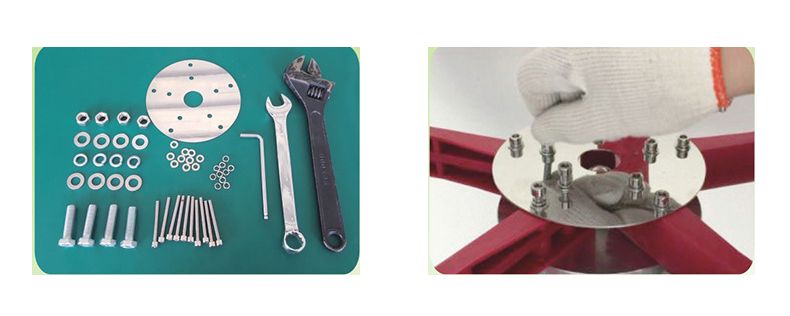

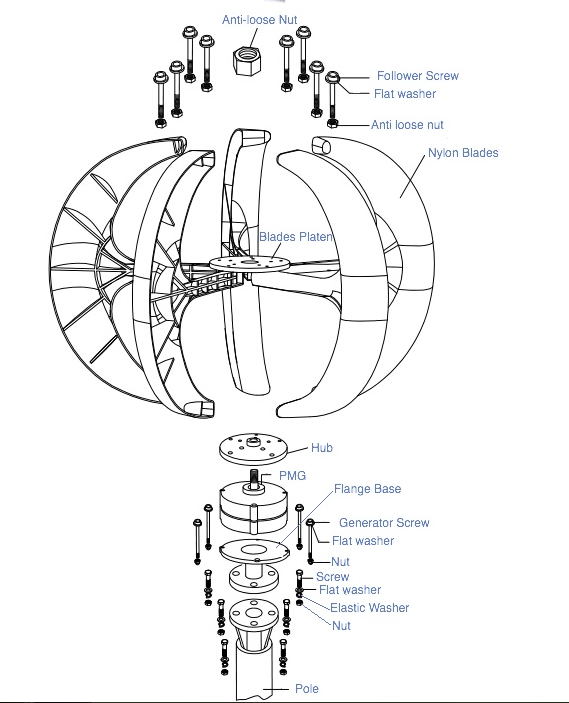

                                                   1. Prepare for all the accessories                               2. Match the blades with hub

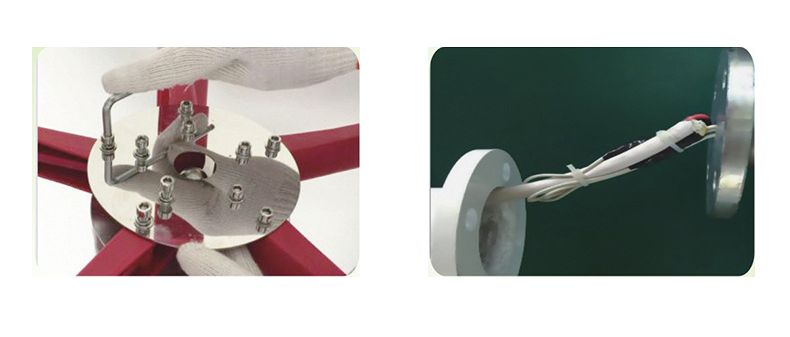

                                              3. Fix the blades wirh bolts                                      4.  Connect three conductors of generator to the cable.

                                                                                                                                    Stranded length of wires shall not be less than 30mm;

                                                                                                                                    Fasten the  connecting end at 10mm with adhesive tape

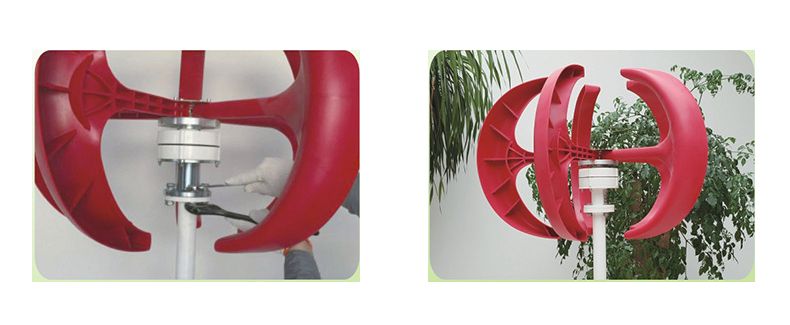

                                               5. Install the pole to turbine, and fix the ring flange     6. Connect the turbine with controller
