OVERVIEW
GENERATOR | Model | OWELL-8KWSE |
Frequency(HZ) | 50 | 60 |
Ma*. output(kw) | 8 | 8.5 |
Rated output(kw) | 7.5 | 7.5 |
Rated. AC voltage(v) | 120, 220, 230, 240,380,400,415 |
Power factor(cosΦ ) | cosΦ =1 |
DC output (v) | 12V/8.3A |
Phase | Single phase/ three phase |
Alternator type | self-e*cited, 2-pole, single phase alternator |
Starting system | Electric |
Operating noise level(at 7m) | 70~73 |
Fuel tank capacity(L) | 30 |
Continues work(hr) | 12 | 11 |
ENGINE | Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine |
Bore* stroke(mm) | 98*84 |
Fuel | 0# or -10# light diesel fuel |
Lubrication oil volume(L) | 1.65 |
Combustion system | Direct lnjection |
STANDARD FEATURES | Voltmeter | yes |
AC Output Socket | 2 |
AC circuit breaker | yes |
Oil warning light | yes |
Oil alert | yes |
OPTIONAL FEATURES | DC circuit breaker | optional |
Calculagraph | optional |
Big Wheel | optional |
Three phase voltage | optional |
Current meter | optional |
ATS | optional |
Remote control | optional |
Welding | optional |
DIMENSIONS | Dimension(L* W* H)(mm) | 1110*760*860 |
Net weight(kg) | 210 |
20FT | 30 |

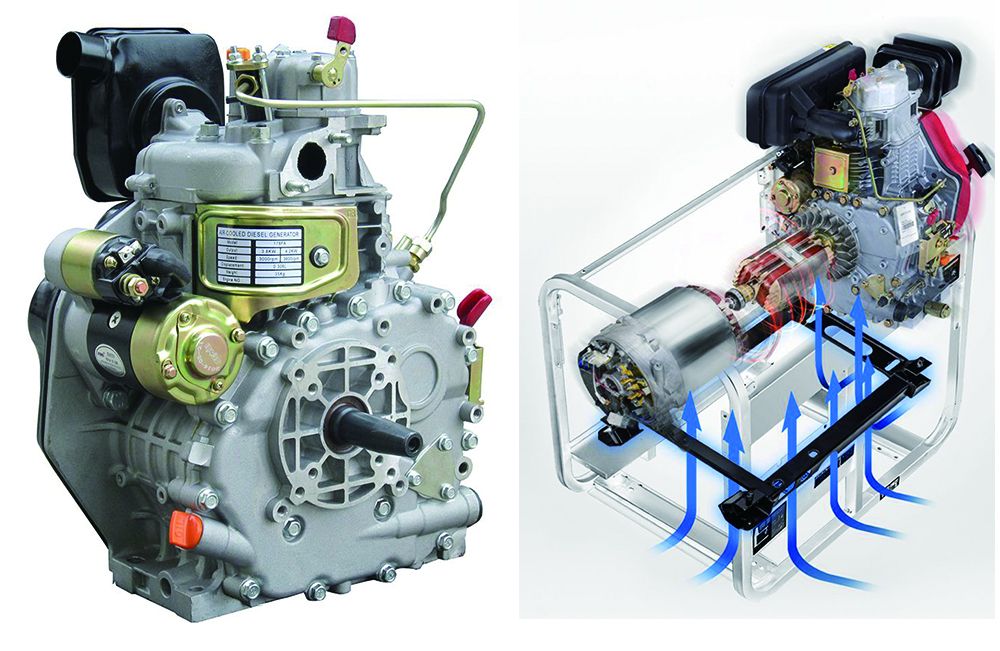

Strong Air Cooled Engine Power Ruggedized Frame Design
Easy to Maintain, Low Cost to Use


Workshops
1. Modern workshops. Advanced production lines equipped with whole set of inspection, testing equipment.
2. Skilled and practised assemblers
3. Flow cards to record each details carefully.
4. Test engine for at least 45mins to adjust the best state.

Products Are Available For Multiple Emergency Situations & Places
