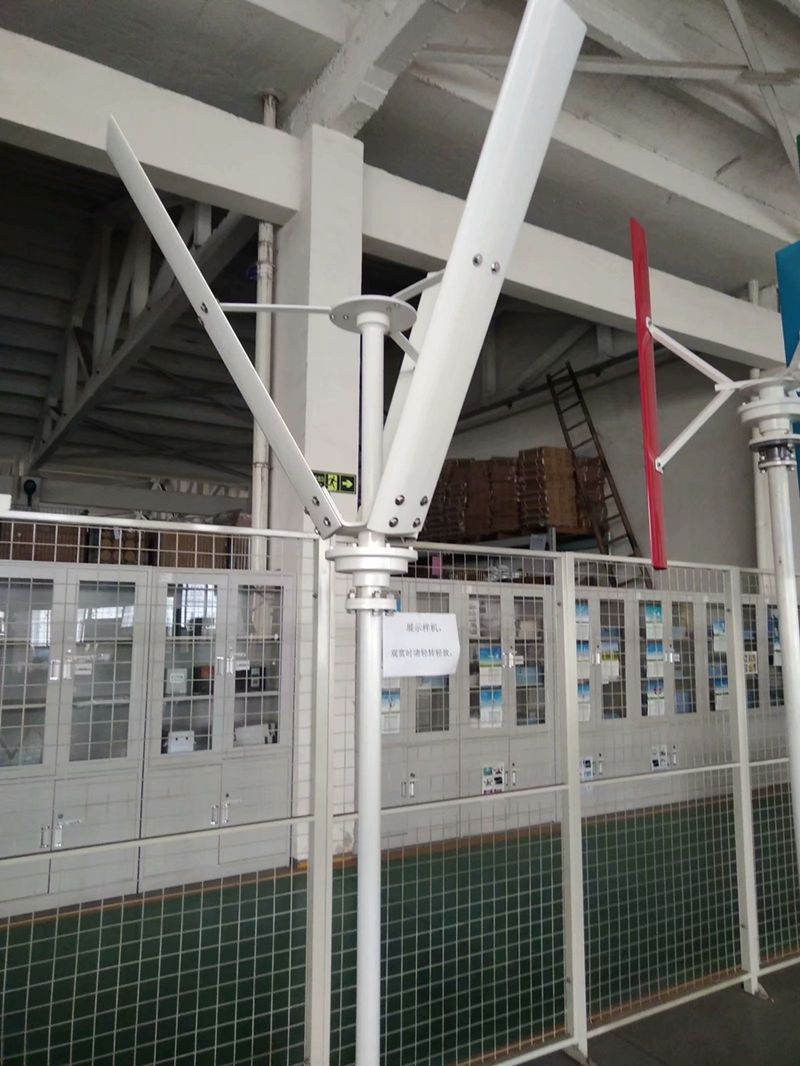

OWELL 300W, 400W, 600W permanent magnet vertical axis wind turbine
Features:
Direct-drive permanent magnet iron-less synchronous generator
Stall design of blade over wind speed
Mechanical automatic brake
Electronic unloading and hydraulic brake protection
Equipped with anemometer
PWM unloading
PLC controller, equipped with hmi real-time screen monitoring, can download historical data.
OWELL 300W, 400W, 600W permanent magnet vertical axis wind turbine
Features:
Direct-drive permanent magnet iron-less synchronous generator
Stall design of blade over wind speed
Mechanical automatic brake
Electronic unloading and hydraulic brake protection
Equipped with anemometer
PWM unloading
PLC controller, equipped with hmi real-time screen monitoring, can download historical data.
OVERVIEW
| Item | OWELL-300WH | OWELL-400WH | OWELL-600WH |
| Rated Power | 300W | 400W | 600W |
| Rated Voltage | 24V/48V/96V or customized | 24V/48V/96V or customized | 24V/48V/96V or customized |
| Wheel diameter | 1m | 1.2m | 1.6m |
| Wheel height | 1.6m | 1.8m | 2m |
| Electronic unloading | 1kw brake resistance box | ||
| Start wind speed | 2.3m/s | ||
| Rated wind speed | 11m/s | ||
| Extreme wind speed | 53m/s | ||
| Rated Speed | 230RPM | ||
| Blade quantity | 3/4/5 pieces | ||
| Blade materials | aluminium alloy | ||
| Braking system | electromagnetic brake/mechanical brake(customerized) | ||
| Hydraulic brake | active brake, electric outage brake | ||
| Alternator | 3 phase permanent magnet synchronous generator | ||
| Control system | Electromagnetic/The wind Angle automatically | ||
| Yaw method | Speed self-protection, manual hydraulic brake, electronic brake | ||
| lubrication mode | Self-lubrication | ||
| Insulation Class | H | ||
| Design Level | IEC class III | ||
| Noise | ＜50dBA | ||
| Protection Class | IP54 | ||
| Working temperature | -40℃-80℃ | ||
| Altitude | ≤2000m | ||
| Design life | 20 years | ||
| Controller unit | PLC | ||
| Interface | HMI | ||
