Product details

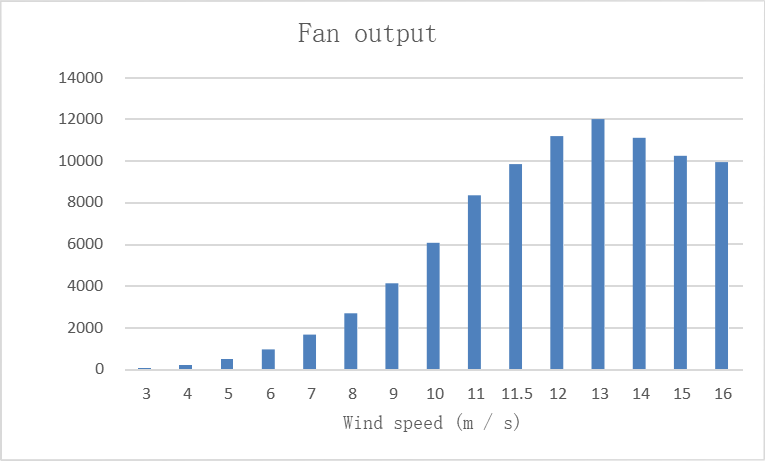

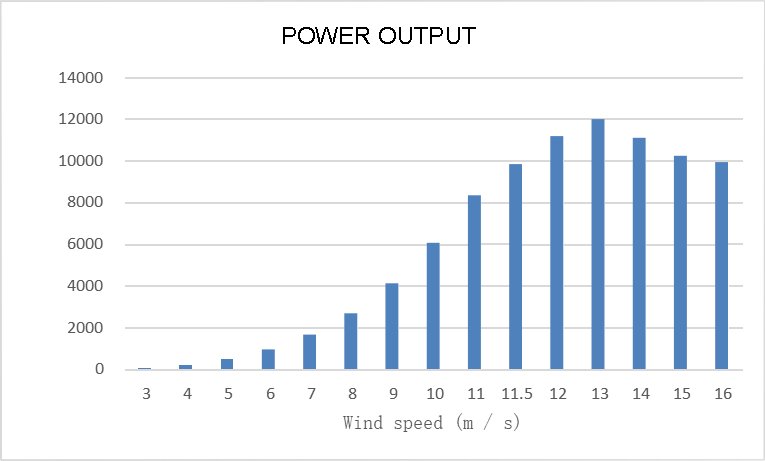

The OW-10KWH wind turbine uses a direct-drive permanent magnet synchronous generator with a generator starting torque of 7-10Nm and can be started at a wind speed of 2.3m / s. The maximum output power of the fan can reach 12kW, and the generator complies with IEC 60034-1 Medium S1 continuous working system requirements. It can still have stable power output at high wind speeds. This model has 3 safety protection systems: stall, electronic unloading, and hydraulic brake, making the system work more safe and reliable.

Technical Parameters:


ModelOW-10KWH
Rated Power10kW
Rated Voltage220V/380V or customized
Wind Turbine Diameters6m
Blade Height7.5m
Power RegulationMPPT
Rated RPM80 RPM
Start-up Wind Speed2.3m/s
Rated Wind Speed11m/s
 Maximum Wind Speed53m/s
Braking SystemElectromagnetic
Electronic Unloading15kw braking resistor box
Hydraulic BrakeActive braking, power failure braking
Controller UnitPLC
HMIHMI
AlternatorThree-phase ironless permanent magnet synchronous
Design ClassIEC Class Ⅲ
Insulation ClassH
Blade MaterialsAlloy
Blade Qty3/4/5
Noise62FB
Noise Level<65dBA
Temperature‐20°C~50°C
AltitudeBelow 2000m
Protection ClassIP54
Service Time20  year
Tower TypeIndependent pole
CertificateCE, ISO

Packing Weight: 1500kg

Packing Measurements: 1.  1000 * 1000 * 2000mm (generator)

            2.  700*600*8300(blade)

                    3.  3000*1200*900(Accessories)

OW-10kWH wind turbine annual output

Wind speed (m / s)

Annual power generation (kWh)

3

3618

4

8158

5

15026

6

23434

7

32088

8

40061

9

46968

10

52770

11

57576

12

61544

13

64825

14

67551

15

69830
