OWELL wind & solar power concept concentrates on “FUTURE, TECHNOLOGY AND HUMANITY”, strive to the spread of clean energy and reduce the cost to use
Based on mature industry chain, integrate the sources including wind turbine, solar panels, controller systems to make professional solutions, bring Efficiency, Cost and Environment benefits to our valued customers
OWELL wind & solar power concept concentrates on “FUTURE, TECHNOLOGY AND HUMANITY”, strive to the spread of clean energy and reduce the cost to use
Based on mature industry chain, integrate the sources including wind turbine, solar panels, controller systems to make professional solutions, bring Efficiency, Cost and Environment benefits to our valued customers
SOLAR PANEL(Monocrystalline Silicon)
| Technical Parameters
| Model | Pmax(W) | Vmax(V) | Imp(A) | Voc(V) | Isc(A) | Size | Hole Spacing | Weight |
| W*L*H(mm) | (mm) | (kg) | ||||||
| DYP-30W | 30W | 17.5 | 1.72 | 21.5 | 3.33 | 520*410*25 | 380*320 | 3 |
| DYP-40W | 40W | 17.5 | 2.29 | 21.5 | 2.58 | 540*540*25 | 390*510 | 4 |
| DYP-50W | 50W | 17.5 | 2.86 | 21.5 | 3.23 | 530*640*25 | 500*400 | 5 |
| DYP-60W | 60W | 17.5 | 3.43 | 21.5 | 3.88 | 670*590*25 | 560*410 | 5.5 |
| DYP-70W | 70W | 17.5 | 4 | 21.5 | 4.52 | 870*530*30 | 500*530 | 6 |
| DYP-80W | 80W | 17.5 | 4.57 | 21.5 | 5.17 | 670*770*30 | 640*480 | 6.5 |
| DYP-90W | 90W | 17.5 | 5.143 | 21.5 | 5.81 | 670*836*30 | 640*520 | 7 |
| DYP-100W | 100W | 17.5 | 5.72 | 21.5 | 6.46 | 670*910*30 | 640*520 | 7.6 |
| DYP-110W | 110W | 17.5 | 6.29 | 21.5 | 6.29 | 670*1020*30 | 640*630 | 8 |
| DYP-120W | 120W | 17.5 | 6.86 | 21.5 | 7.75 | 670*1120*30 | 640*700 | 9 |
| DYP-130W | 130W | 17.5 | 7.34 | 21.5 | 8.4 | 670*1190*30 | 640*910 | 10 |
| DYP-140W | 140W | 17.5 | 8 | 21.5 | 9.04 | 670*1310*30 | 640*800 | 11 |
| DYP-150W | 150W | 35 | 4.29 | 43 | 4.85 | 670*1410*30 | 640*810 | 12 |
| DYP-160W | 160W | 35 | 4.58 | 43 | 5.17 | 670*1500*35 | 630*910/630*555 | 13.5 |
| DYP-170W | 170W | 35 | 4.86 | 43 | 5.49 | 670*1570*35 | 630*970/630*600 | 14.5 |
| DYP-180W | 180W | 35 | 5.14 | 43 | 5.81 | 670*1650*35 | 630*1020/630*630 | 16 |
| DYP-190W | 190W | 35 | 5.42 | 43 | 6.14 | 670*1650*35 | 630*1010/630*630 | 16 |
| DYP-200W | 200W | 35 | 5.72 | 43 | 6.46 | 990*1200*35 | 950*740 | 17 |

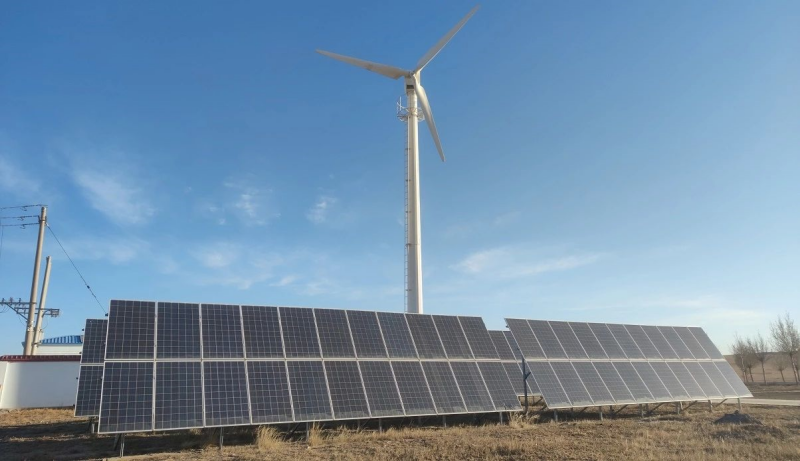

Wind & Solar Hybrid Power Sytem
